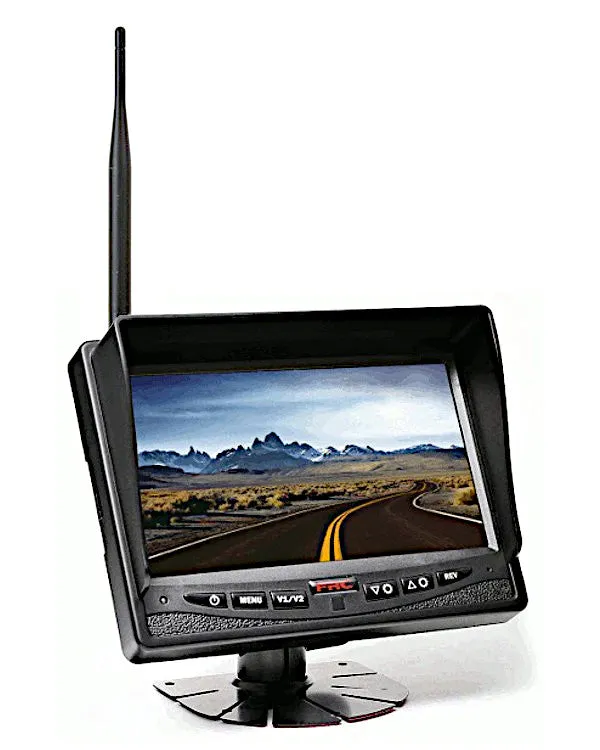

The BCA200 Series Monitor for InView Truesight™ Monitor Systems is a perfect replacement or addition to your existing monitor system. Wireless systems are a great option for upgrading video on an existing apparatus, or for use in aerial applications where running a video wire is not practical. A transmitter can connect to any one of the InView Monitor cameras which will allow it to wirelessly connect to any monitor with RCA inputs. Simply plug the camera into the transmitter and the receiver into the monitor and the two will communicate wirelessly!

This works with the inView TrueSight™ Wireless Camera System, available .

Specifications:

• Dual Screen TFT LCD Color, 70 ft. Wireless transmission for up to 2 cameras
• Screen Size: 7"
• Dot Resolution: 800 x 3 (RGB) x 480
• Display Format/Contrast: 16:9 / 500:1
• Display Brightness: 400 CD/m2
• Viewing Angle: U:50° D:60° L/R:70°
• Video Input: 2 Channel
• Video Source: 1 VP-P, 75Ω
• Power Supply: DC 12V-24V ( /-10%)
• Power Consumption: 5W
• Operating Temp: -22°F ~ 176°F
• Video System: Auto NTSC/PAL
• Overall Dimensions: 7” (L) x 5” (H) x 1” (D)
• Vibration Rating: 5G
